Hydraulic Torque Wrench Pumps

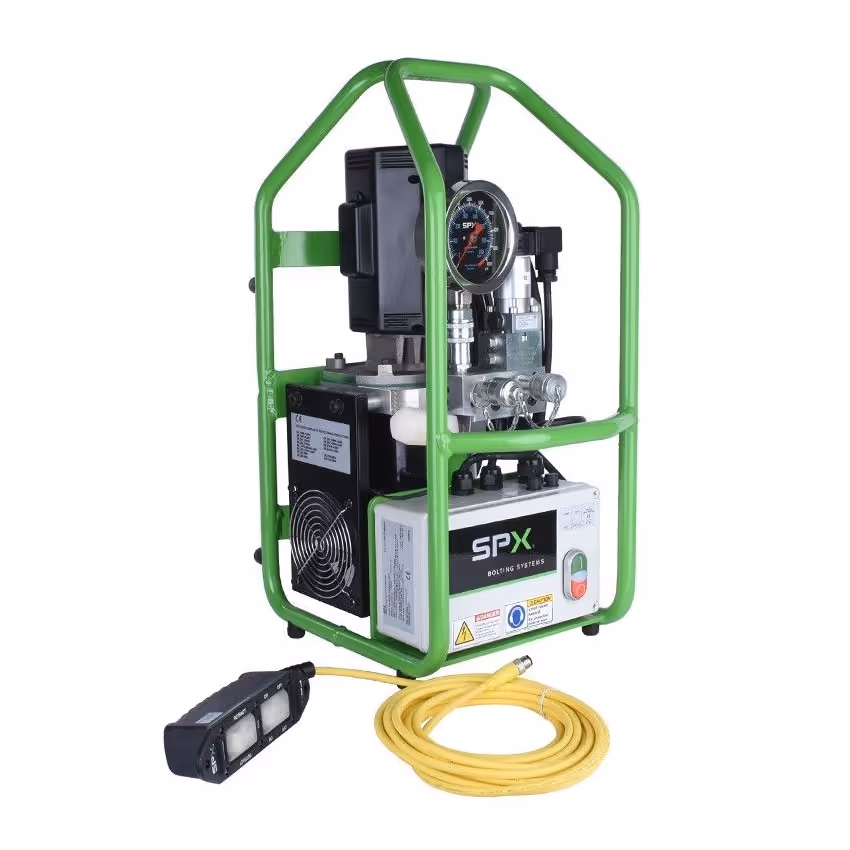

The SPX Flow PE39 electric hydraulic bolting pump and PA60-A air-powered hydraulic pump deliver dependable 700-bar (10,000 psi) hydraulic pressure in compact, highly-efficient designs ideal for bolting wrench operations. The PE39 features dual-speed electric operation, lightweight portability (≈ 20 kg including oil), and is suitable for both vertical and horizontal use, with a flow range of 3.7 L/min (low pressure) to 0.64 L/min (high pressure). It includes a removable calibration gauge, adjustable pressure regulator, and optional cooling fan, guaranteeing over 100,000 duty cycles and continuous performance up to 50 °C ambient.

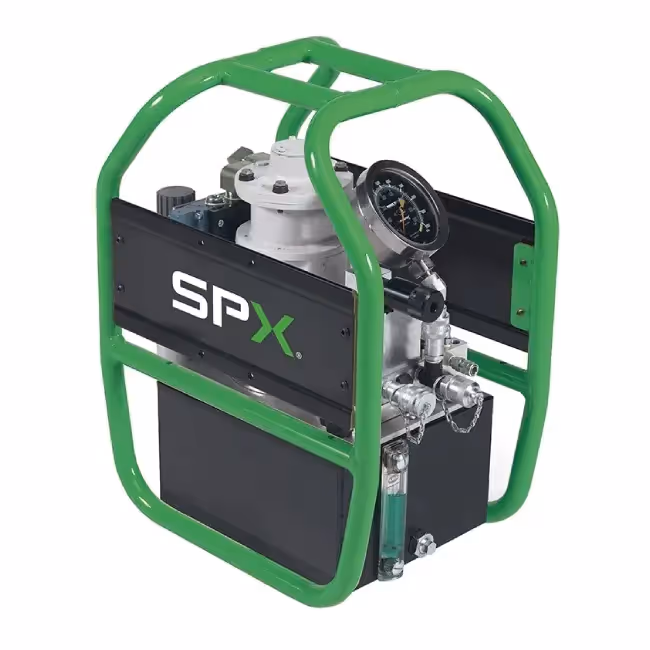

The PA60-A, an Infinity Stage Air Pump, doubles productivity through continuous high-flow pressure delivery—achieving up to 9.4 L/min at low pressure and 0.8 L/min high pressure. It is lightweight (≈ 35–43 kg including oil), ATEX certified (II 2 GDc T4), and supplies power for up to four tools via a manifold. With features like a removable pendant, calibration-capable gauge, and fewer service parts, the PA60-A is built for reliable, lower-life-cycle costs on industrial jobsites.
Together, these hydraulic pumps support efficient, accurate torque wrench applications across construction, industrial maintenance, and mechanical assembly environments.
700 bar Hydraulic Pressure
Both pumps deliver 700 bar (10,000 psi) working pressure—ideal for high‑torque bolting tools and critical flange operations.
High-Efficiency Flow Control
The PE39 offers a two-speed flow (3.7 – 0.64 L/min), while the PA60-A Infinity Stage delivers double the speed of typical two-stage pumps at 9.4 – 0.8 L/min, ensuring faster bolt cycles.
Compact & Portable Design
Despite their power, the PE39 maintains portability (~20 kg with oil) and supports vertical or horizontal installation. The PA60-A weighs 35–43 kg (including oil), with onboard pendant and manifold support for up to four tools.
Built for Durability & Safety
Designed for over 100,000 cycles and continuous duty up to 50 °C, both pumps include safety features such as adjustable pressure relief, retract relief valve, ATEX certification (PA60-A), and optional cooling fan (PE39) for enhanced reliability.
